Fillet Tool

Brep indices for fillet

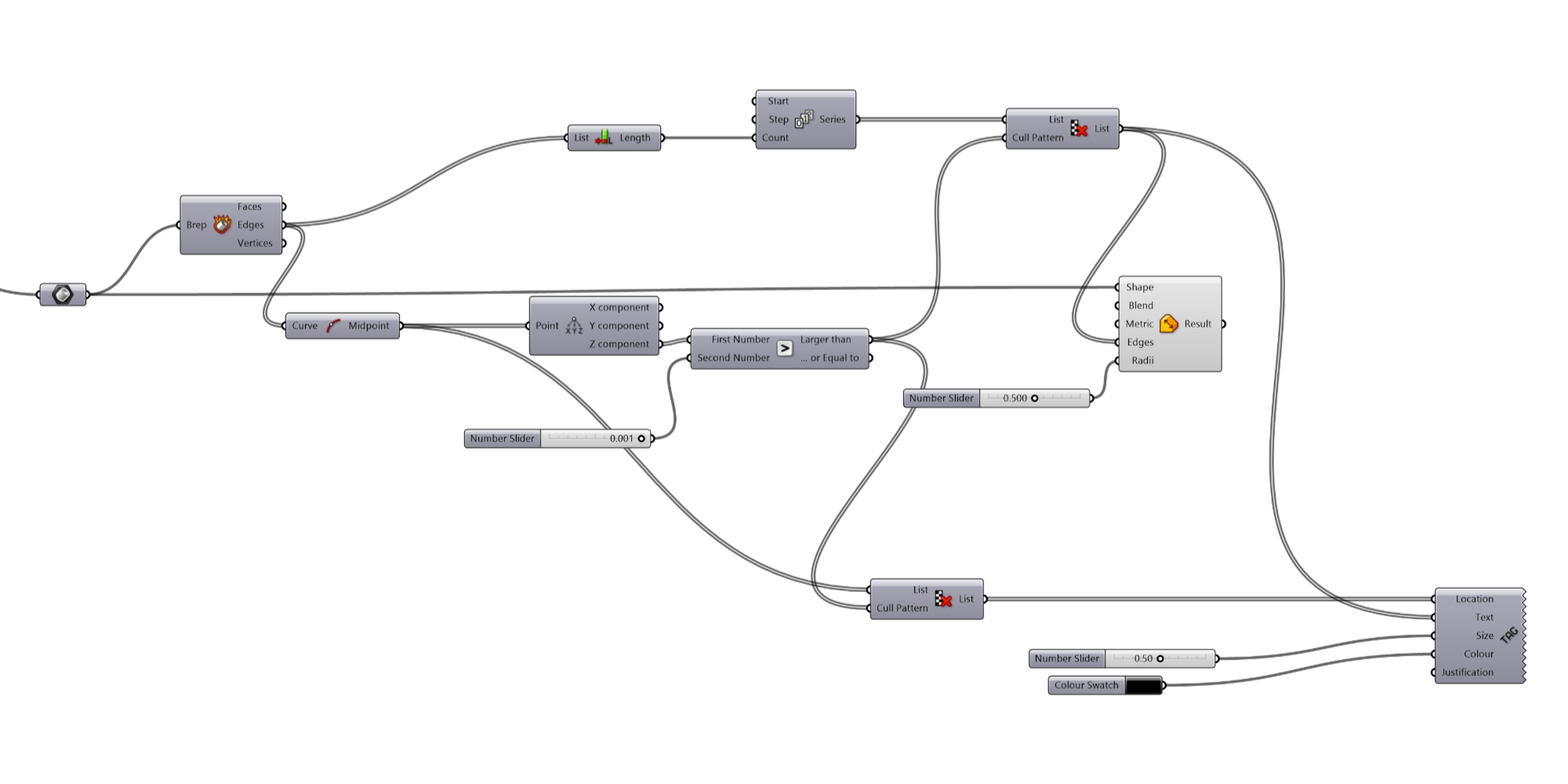

Fillet edge script with 3D Tag to identify edges

Fillet Chamfer Blend

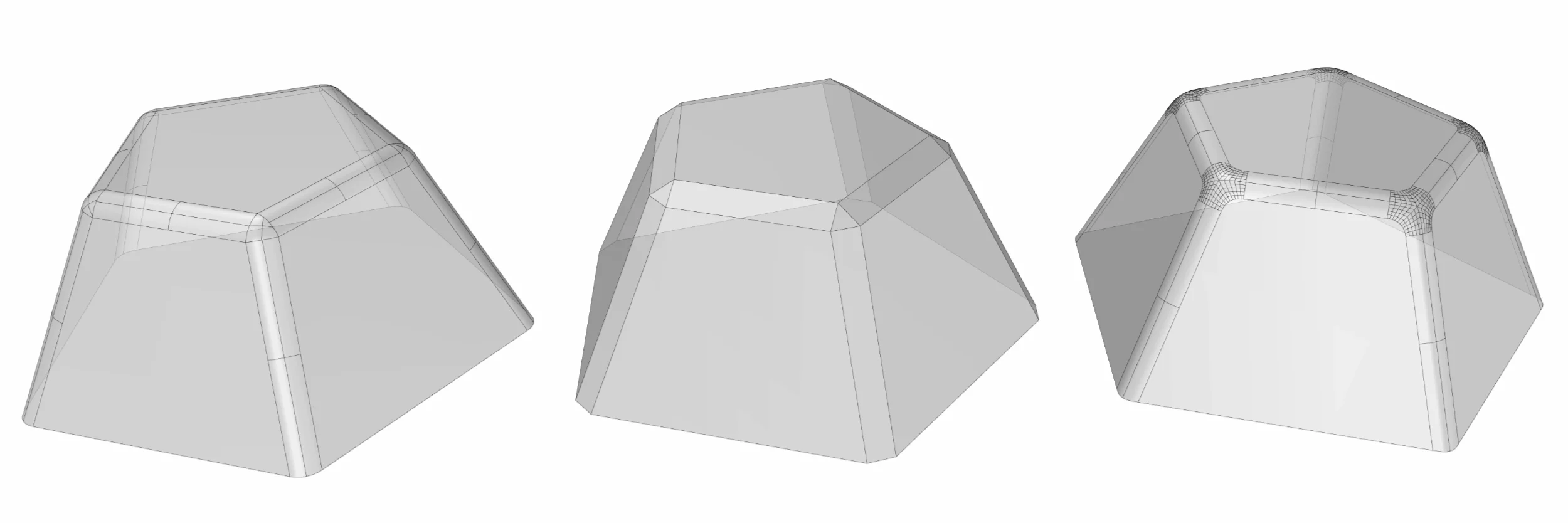

Various fillet options are available with the fillet edge tool

The first step is to identify the specific Brep edges you want to modify.

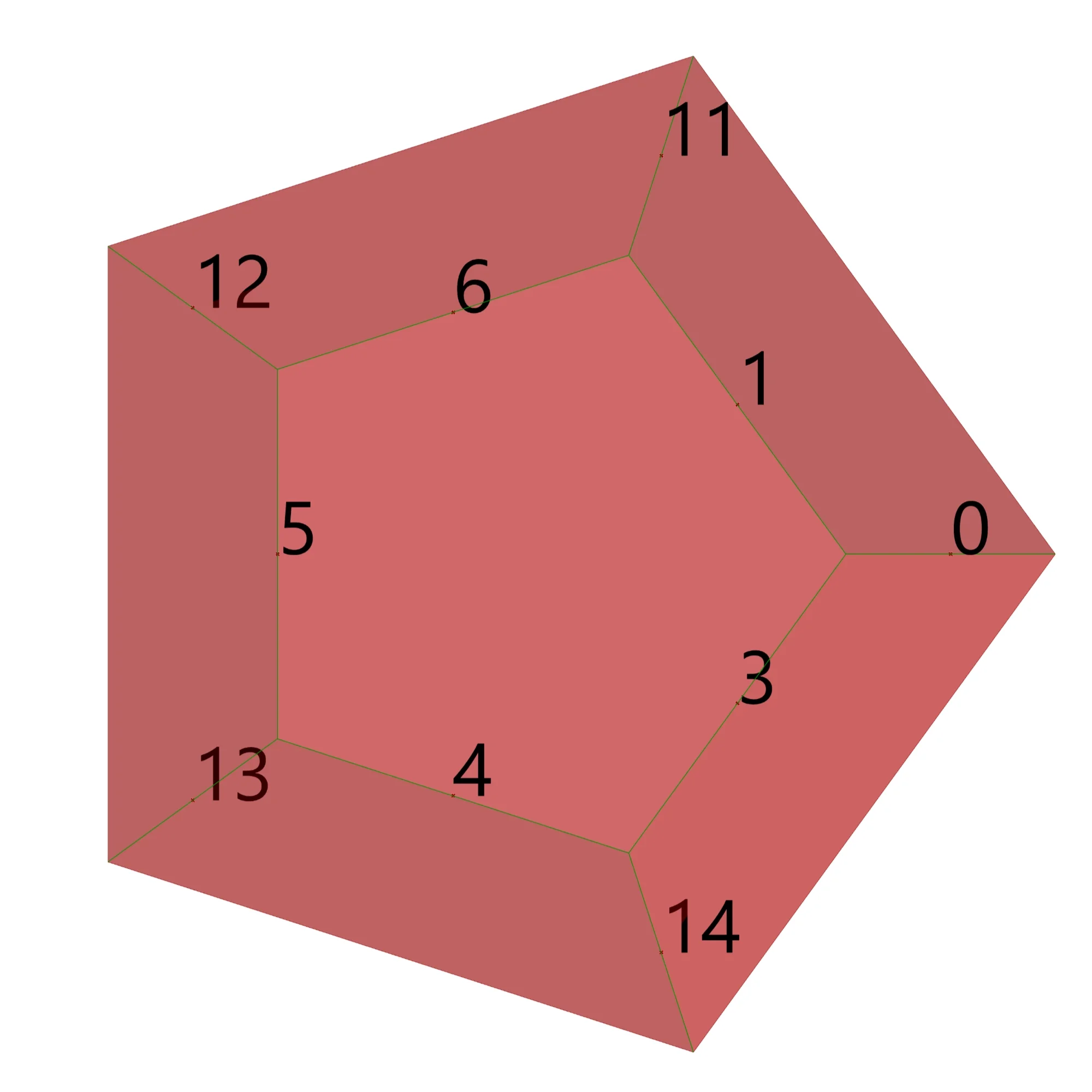

You can do this by labeling the Curve Middle of each edge.

‍ ‍

Cull out the edge list to isolate your target edges. In this example we isolated all edges above the X-Y plane.

Fillet, Chamfer, and Blend options are available within this component.
