SubD Curve Seam

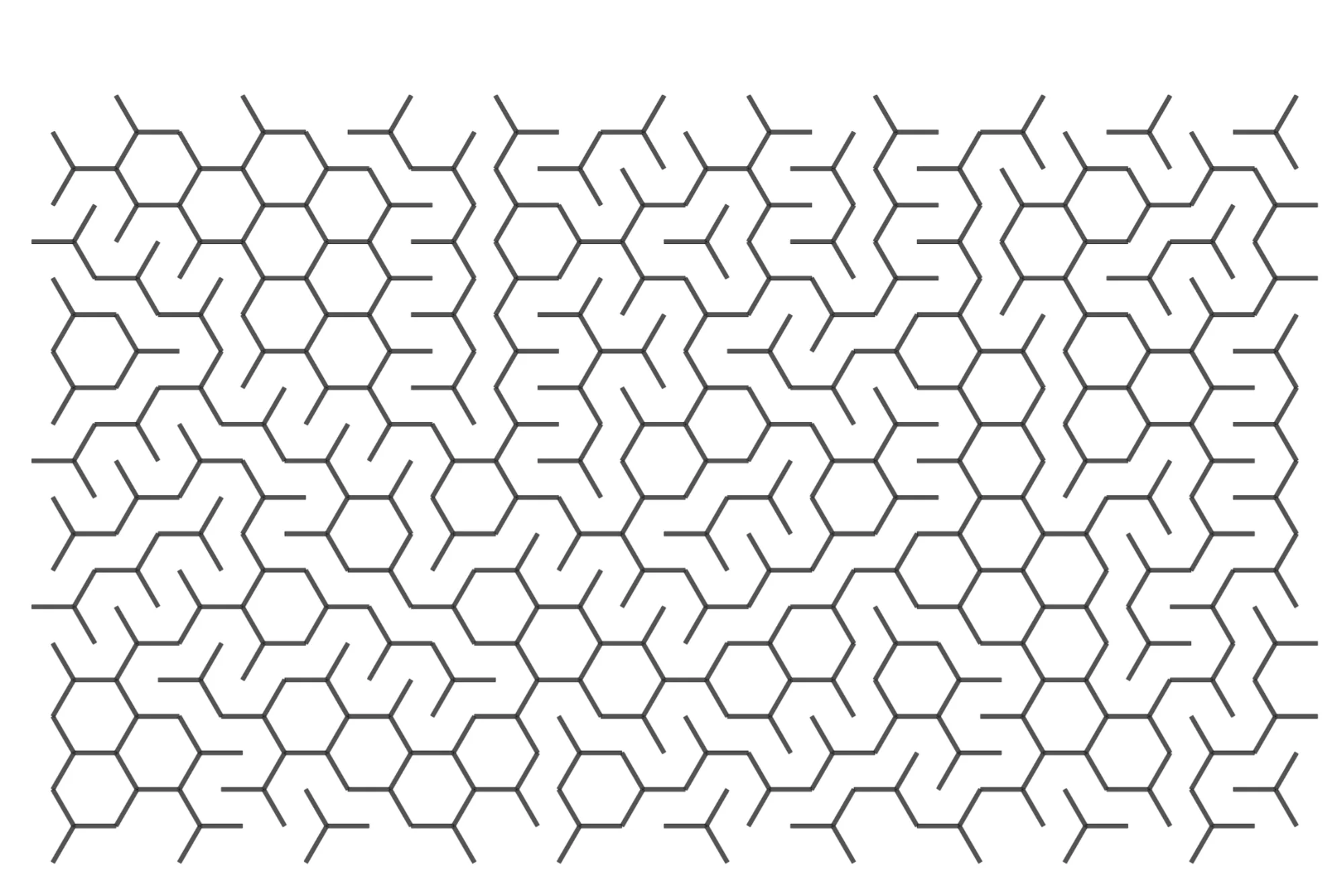

Curve construction

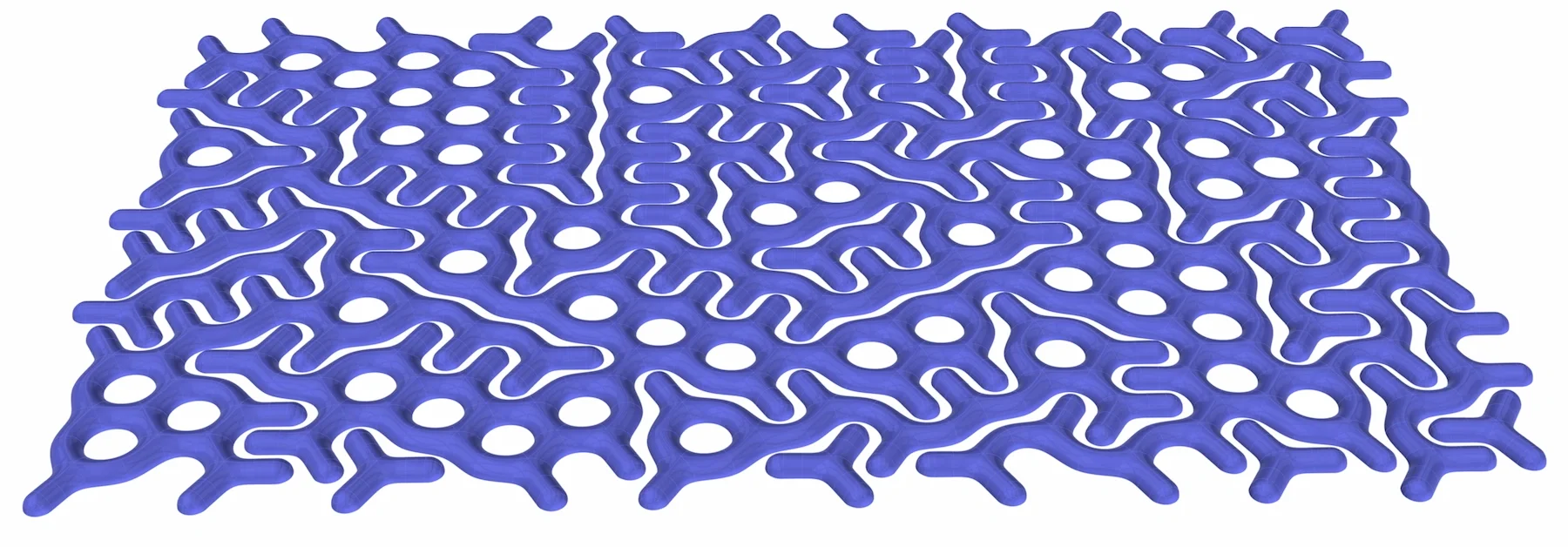

Design after Sub-D and plane trim

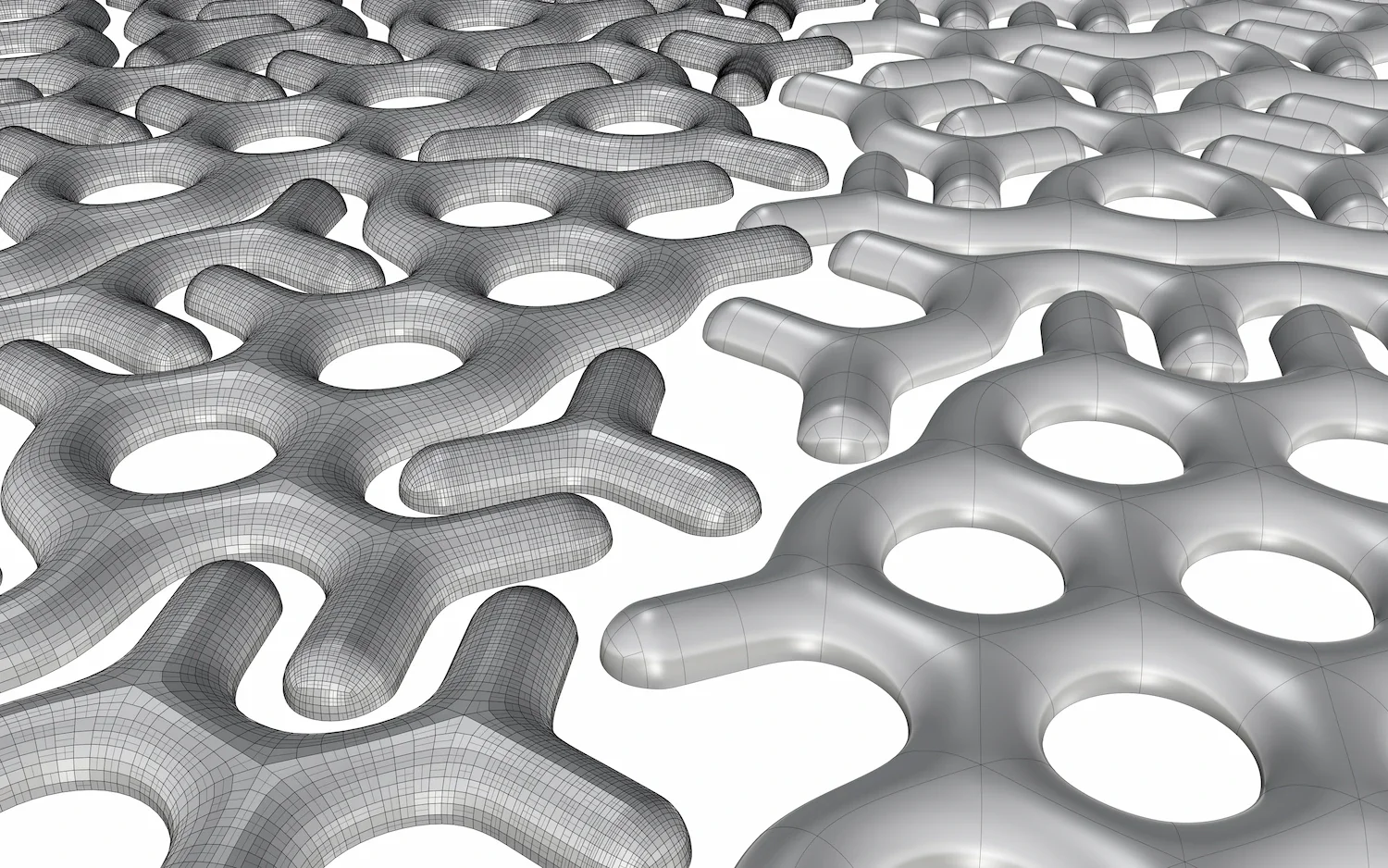

Mesh vs. Brep construction derived from Sub-D pipe

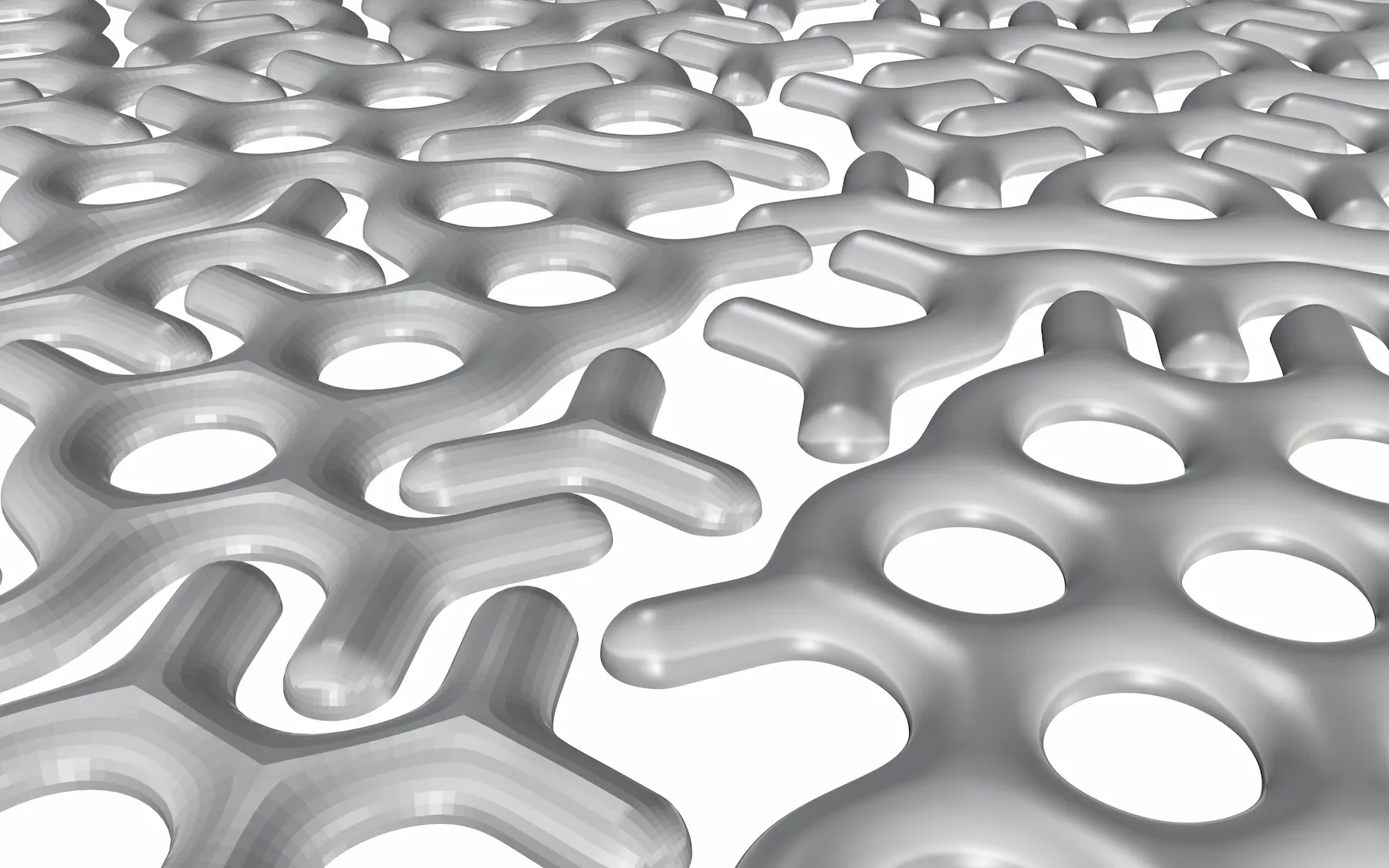

Mesh vs. Brep render derived from Sub-D pipe
From a hexagonal array, a random curve seam is chosen.
This seam is removed from the hexagon and the five remaining vertices are connected to the cell centroid.
The SubD Multipipe function is used to construct a tubular array of figures, smoothly connected at the joints.
The Sasquatch Plug-In is used to trim the SubD figures, which are then converted into Breps.
When comparing the brep construction and render to the equivalent mesh, one may see a smooth geometry without visible facets.
