CURVE CONVERT

This method is useful for converting a complex network of curves to a surface or mesh.

CurveConvert.gh ↓
CurveConvert.gh ↓

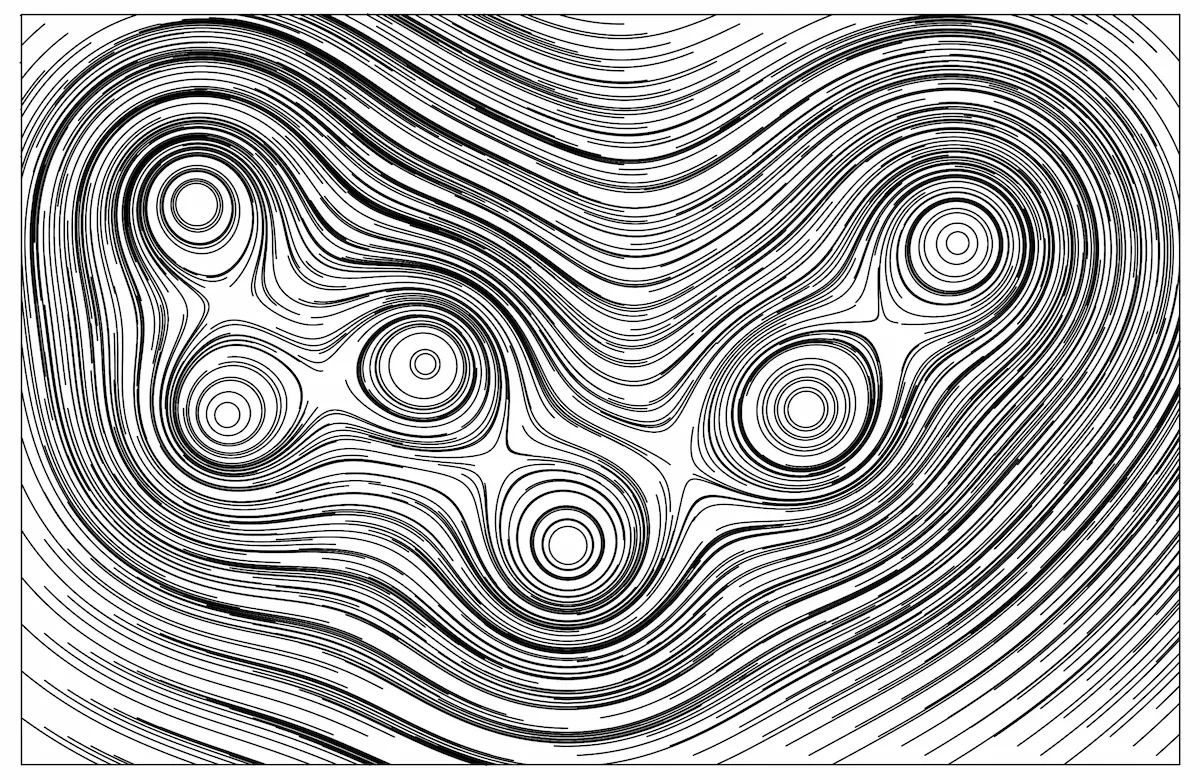

Curves generated from field lines (6 point charges)

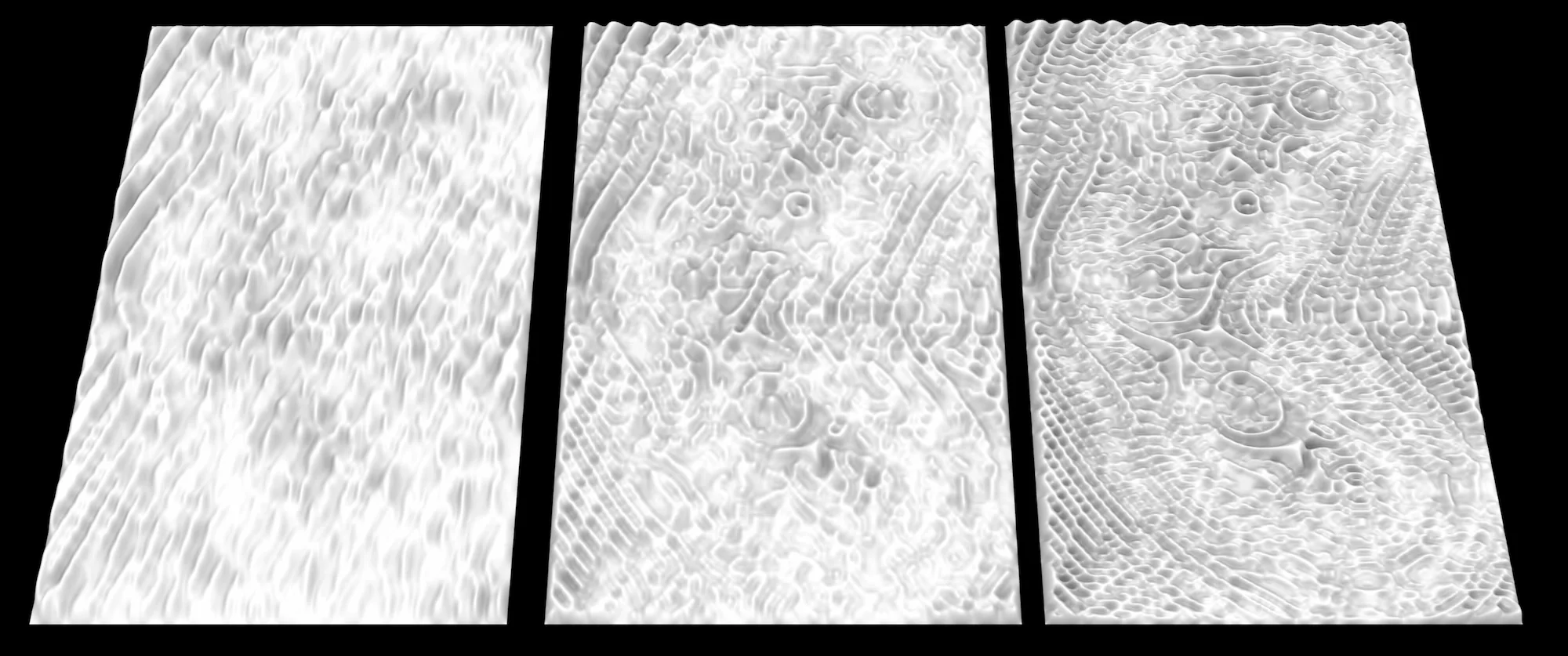

The surface resolution may be controlled by the fineness of the underlying point grid

Generate curves from Field Lines.

Establish a point grid. The spacing of these points determines the final surface resolution.

Find the distance from each point to the nearest curve using the Closest Geometry function (Peacock Plug-In).

Raise the points in proportion to this distance.

Create a surface using the Surface From Points component.
